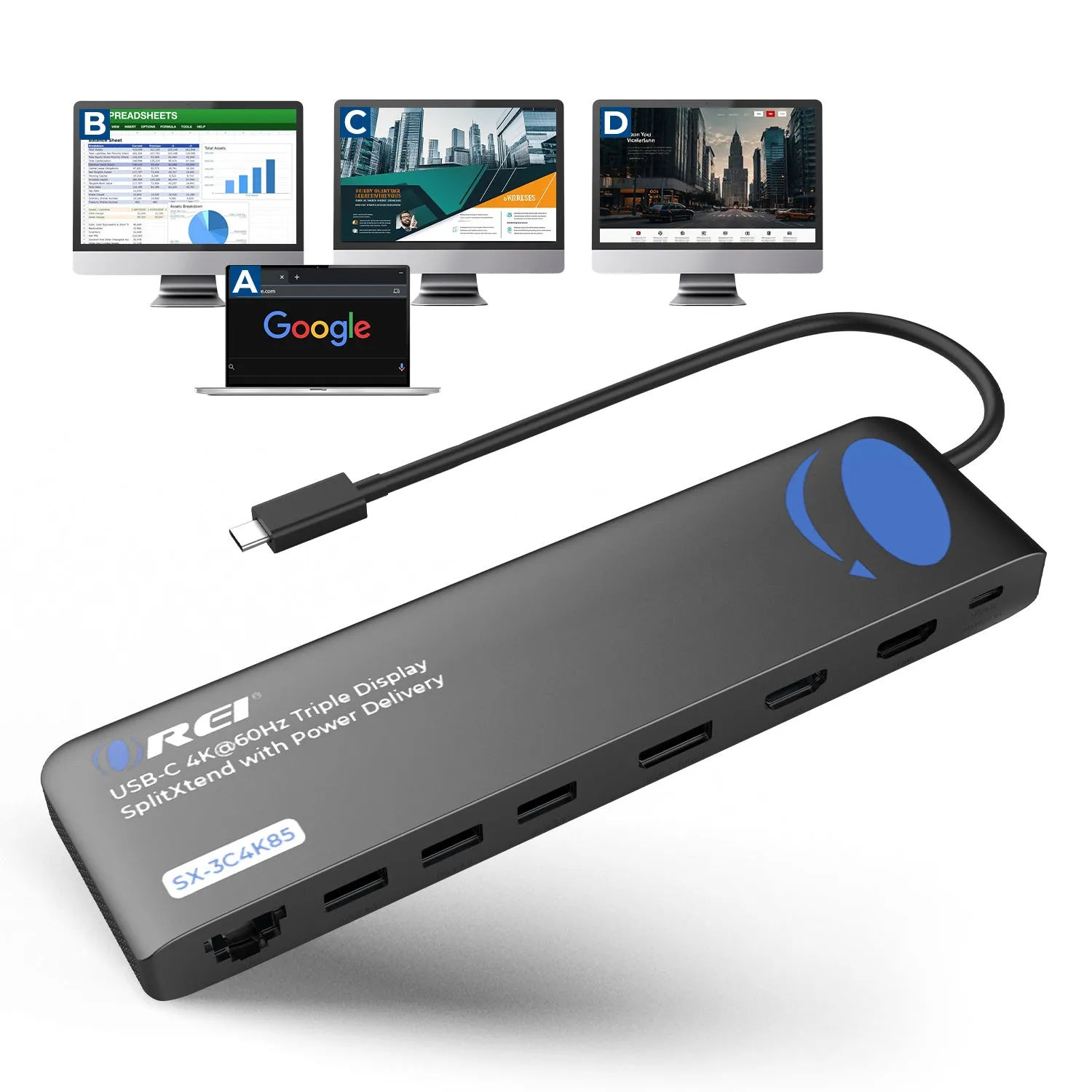

OREI SplitXtend Docking Hub with USB-C input, USB-A, Ethernet, DP, Power delivery up to 85 Watt and up to 3 Extended Displays
Key Features:
- HDMI 2.0, DP 1.4, USB 3.0/2.0 compliant

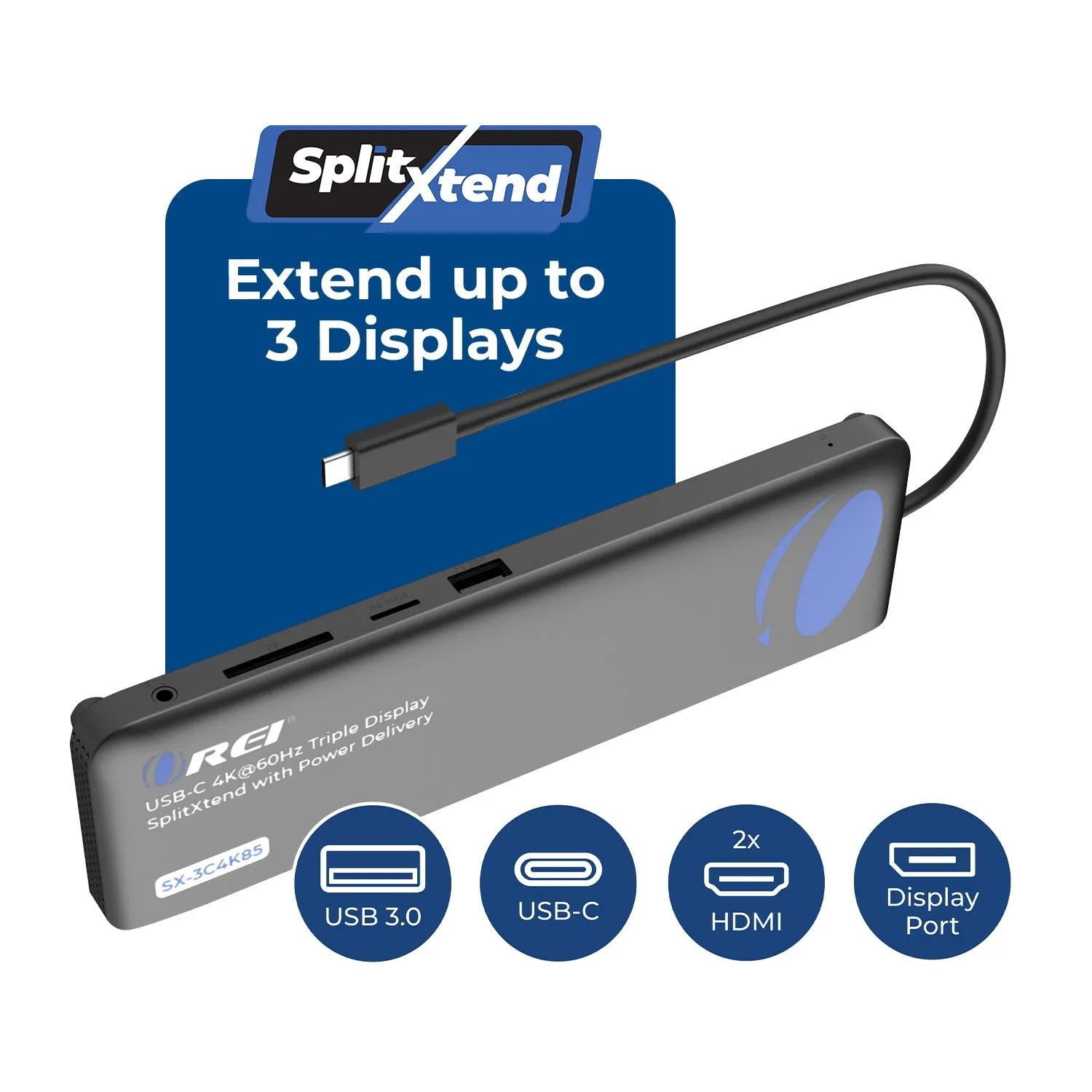

- Extend up to three displays with two types of video outputs HDMI and DP
- Supports Power Delivery(PD) up to 100W including a maximum of 85W for upstream charging.
- RJ45 Gigabit Ethernet Port provides high-speed internet.
- Data transfer rate up to 5Gbps, and downwards compatible with USB 2.0
- Features MicroSD and SD Card Reader SDHC/SDXC (Capacity up to 2TB).
- Supports SD V2.0, SDHC up to 32GB, and SDXC up to 2TB.
- Windows 7/8/10 or later; MacOS X 10 or later required.
- Compact design and easy installation.

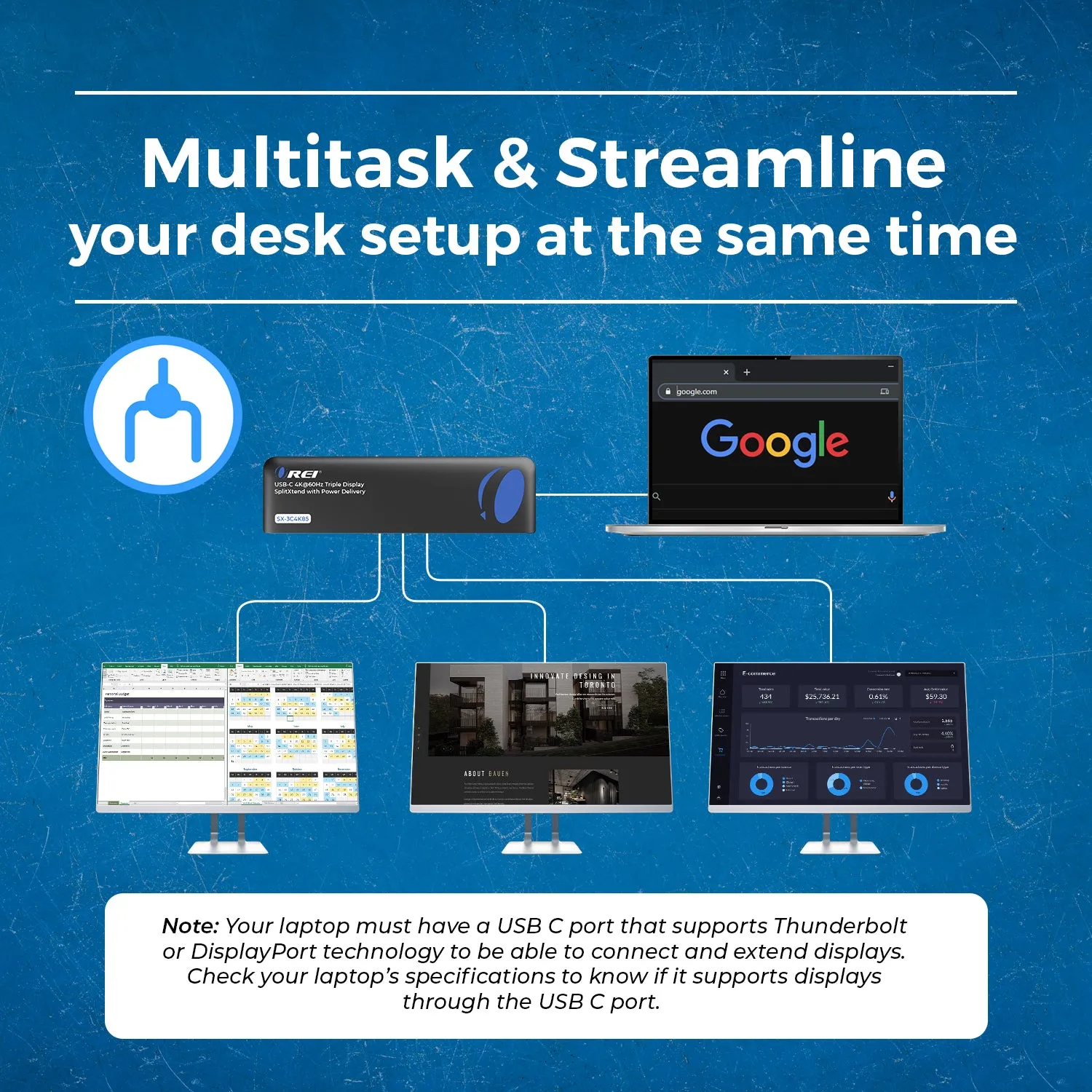

- Please note that the USB-C port must be compatible with Displayport technology in order to extend displays.
System requirements:
- Windows 7/8/10 or later, and MacOS X 10 or later
- CPU i7 or higher, with a minimum of 4GB RAM
- PC/Laptop should support USB PD 2.0
- PC/Laptop should support USB 3.12 Type C with Power Delivery, Video Alternate, and Data Transfer

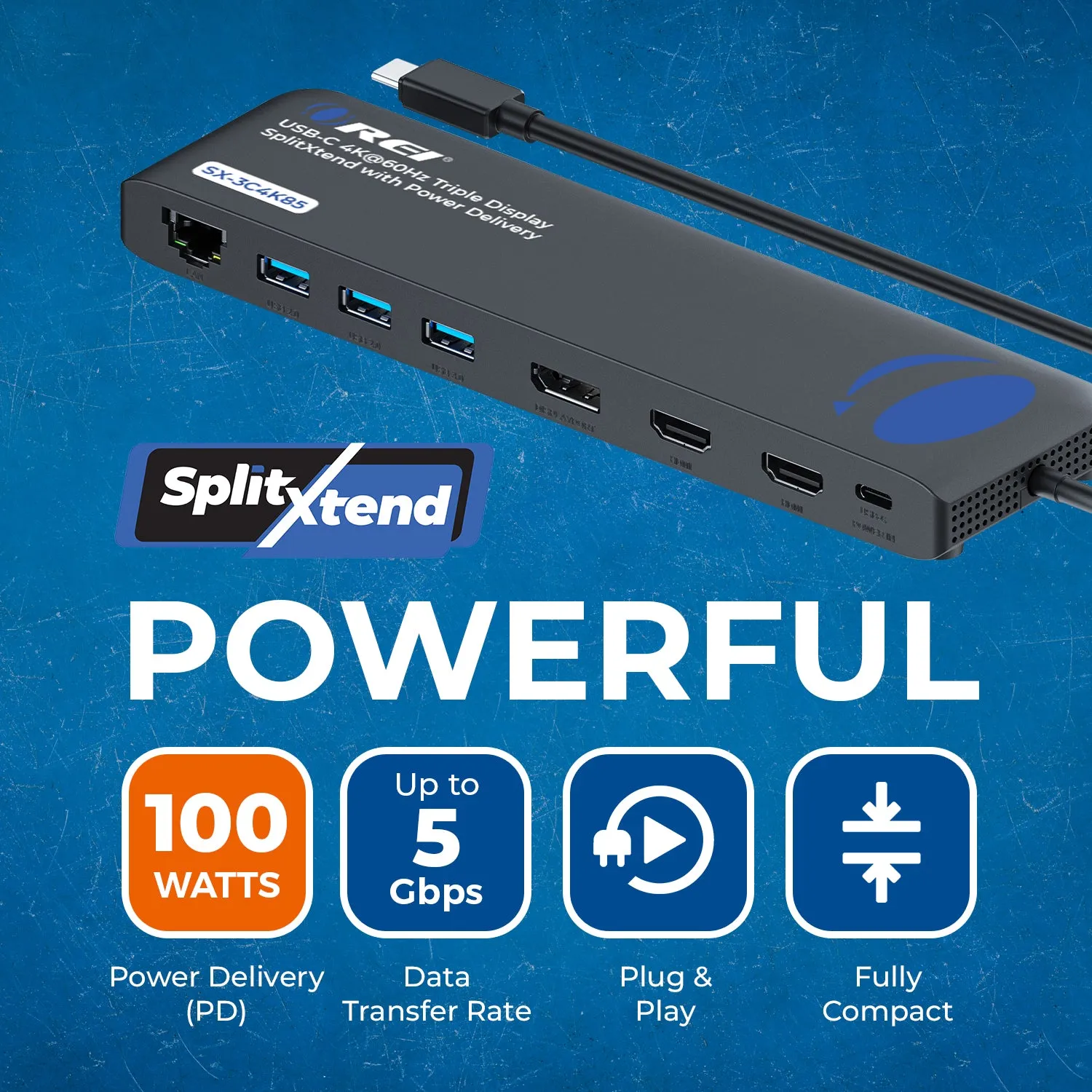

The OREI SplitXtend SX-3C4K85 USB-C Docking Hub is your comprehensive connectivity solution for enhanced productivity. With two HDMI ports, a DisplayPort, USB-C, and four USB-A ports, this hub effortlessly integrates multiple devices for seamless multitasking. Supporting Power Delivery (PD) up to 100W, including 85W for upstream charging, it ensures efficient power management. Extend your workspace across three displays with HDMI and DisplayPort options, while the RJ45 Gigabit Ethernet Port provides high-speed network connectivity. Enjoy swift data transfer rates of up to 5Gbps, backward compatible with USB 2.0 devices. Plus, with MicroSD and SD Card Readers supporting SDHC/SDXC (Capacity up to 2TB), the SX-3C4K85 offers expanded storage options for your files and media.
[shortdes]
- USB-C Docking Hub with USB 3.0, DP, Ethernet, PD, and Display extension
- Video resolutions up to 4K@60Hz and 2K@60Hz
- Up To 3 Extended Displays and power delivery up to 85W
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 1 × USB-C [Female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × DisplayPort [Type A, female] | |
| 4 × USB [Type A, female] | ||
| 1 × LAN [RJ45, 8-pin female] | ||
| 1 × MicroSD [female] | ||
| 1 × SD [female] |

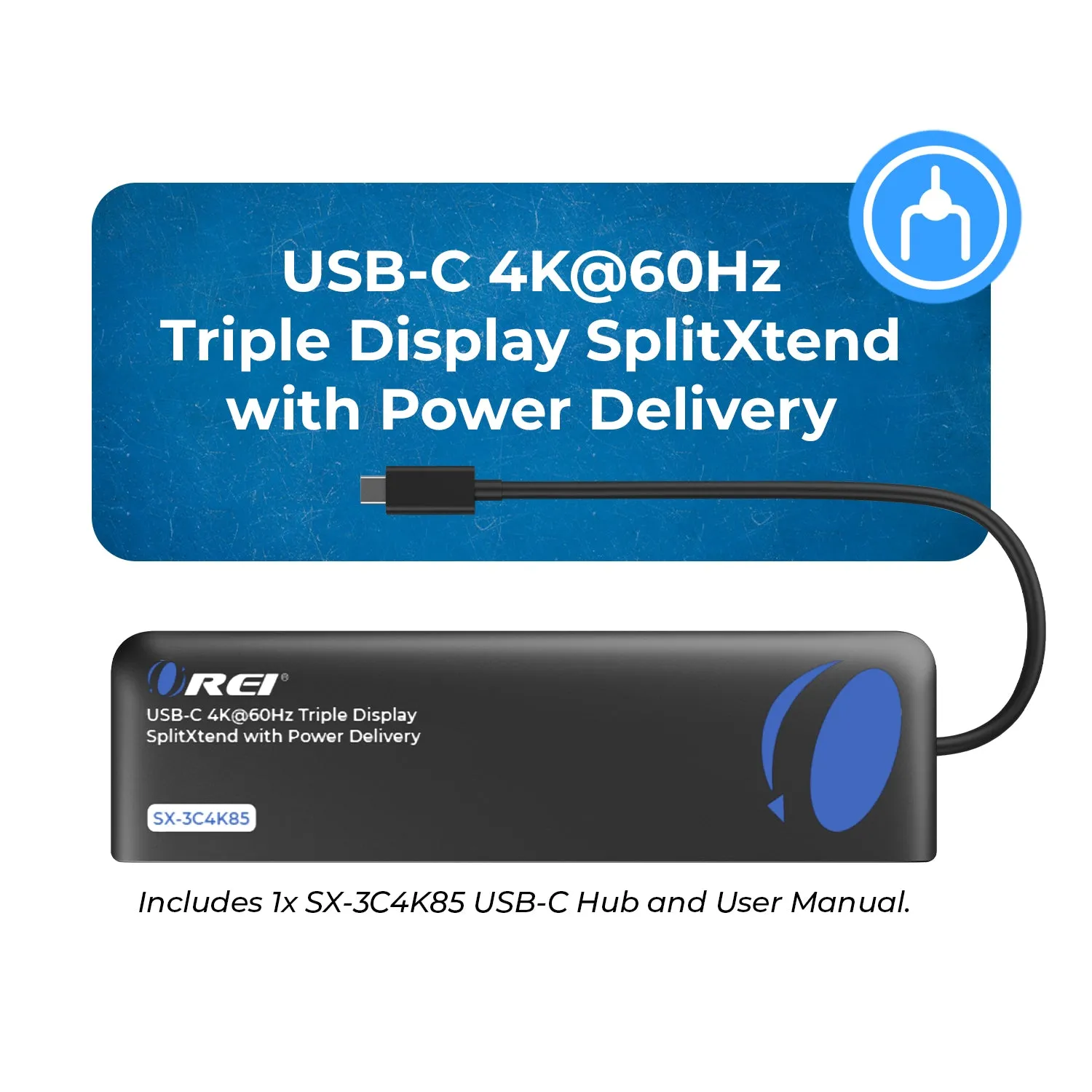

PACKAGE CONTENTS
| 1x SX-3C4K85 USB-C Hub |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
VIDEO OUTPUT
| Video Bandwidth for HDMI: | 18Gbps |
| Video Bandwidth for DP: | 32.4Gbps |
| Video Resolutions: | Up to 4K@60Hz and 2K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB: | Yes |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| USB Compliance | USB 3.0 & 2.0 |
| DP Compliance | DP 1.4 |
POWER
| Power Consumption: | 15W (Max) | |
| Power Supply: | Output: DC 5V/1A | |

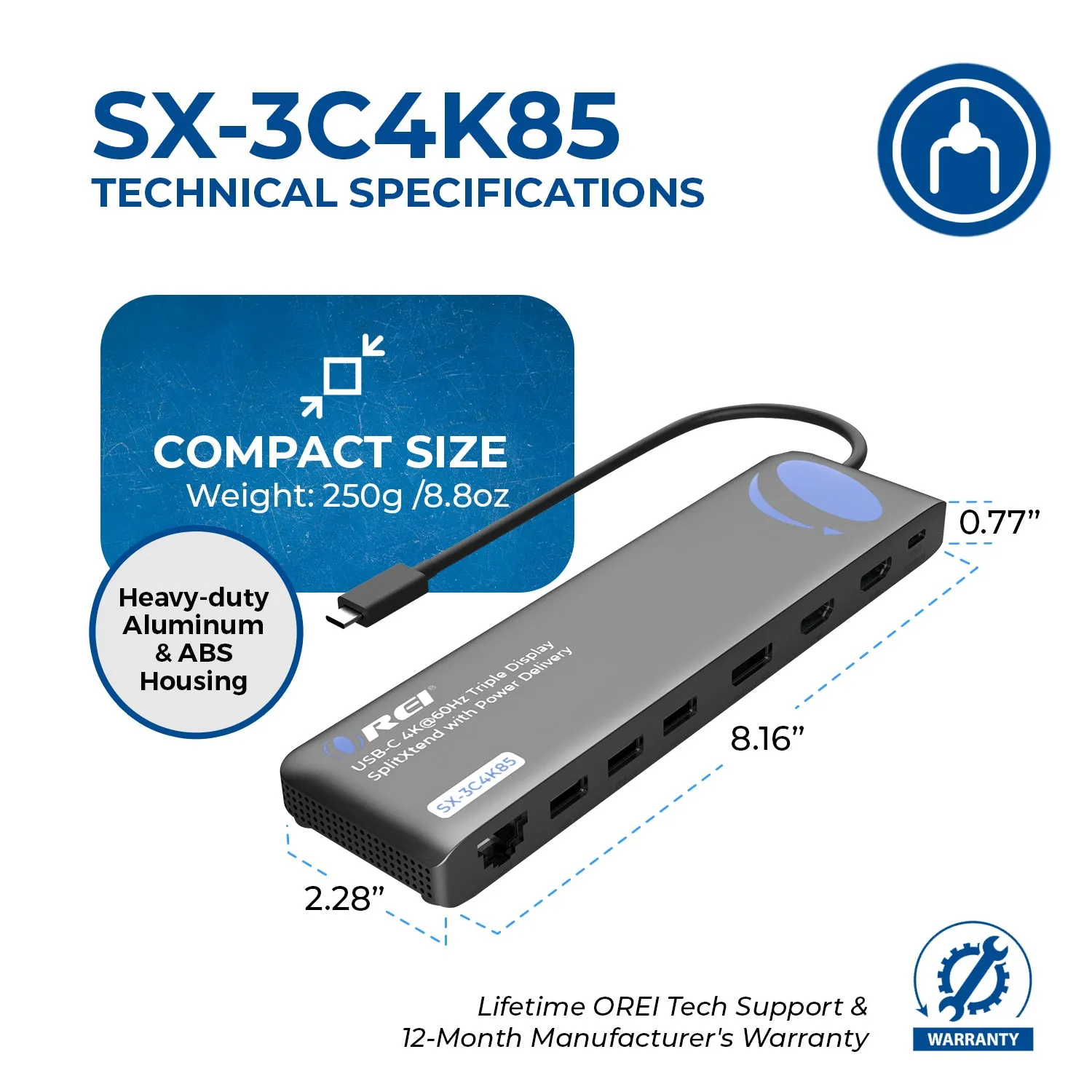

DIMENSIONS & WEIGHT
| Length: | 207.32mm / 8.16in | |
| Width: | 57.98mm / 2.28in | |
| Height: | 19.6mm / 0.77in | |
| Weight: | 250g / 8.8oz |
PROPERTIES
| Color: | Black |
| Housing: | Aluminium Plastic |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Yes, it can extend your display.
Yes it supports extended mode.
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
No, the HDMI splitters do not support CEC because most customers do not want all the TVs to turn ON as soon as the source is turned ON.
