Product Details
＋

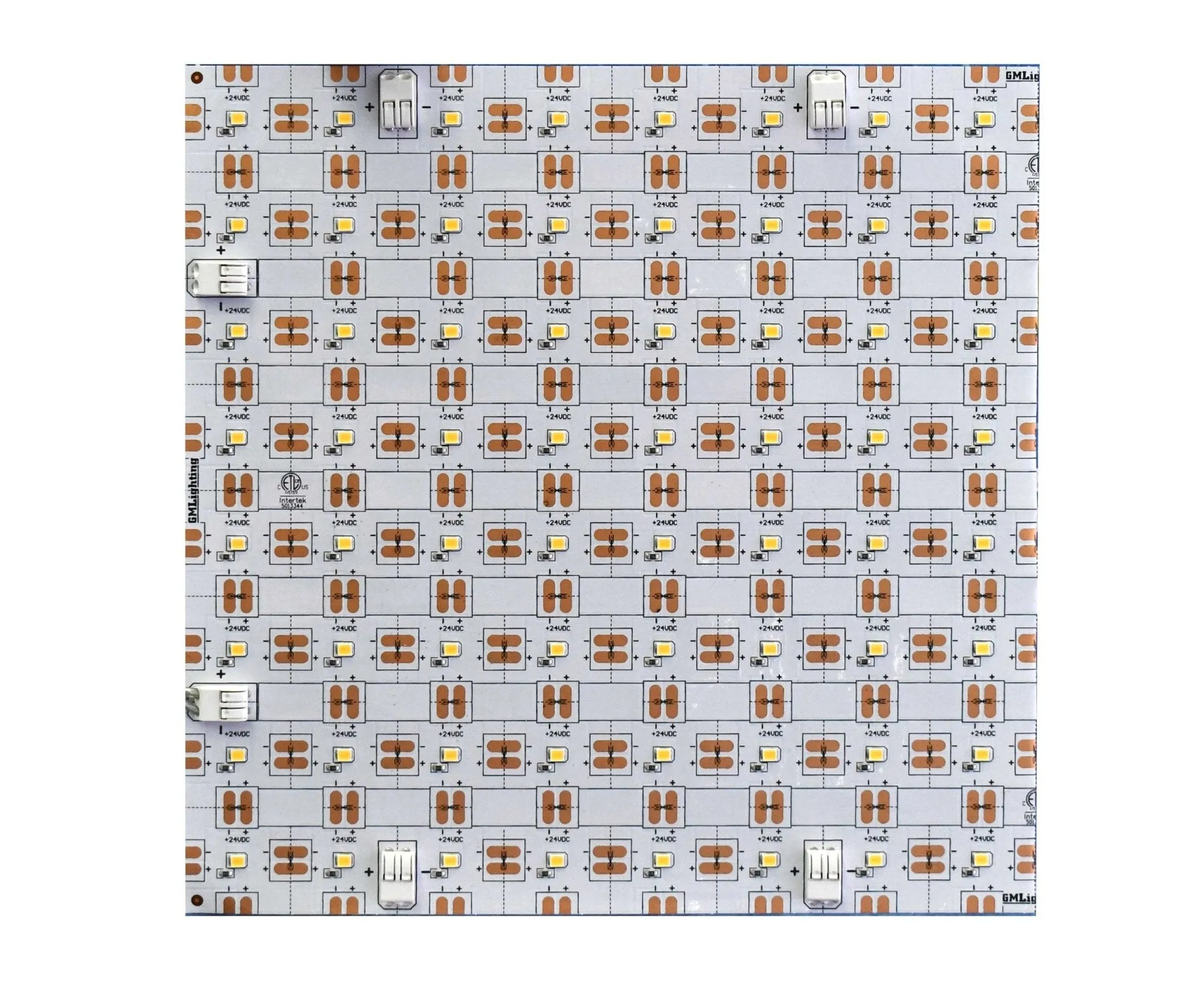

Lamina 24VDC Configurable Laminated Sheet
Lamina is a 24VDC flexible light sheet that can be cut in the field into geometric shapes, creating limitless illumination. Installation is easy and the operation is relatively cool. Lamina needs no heat sinks or dissipaters that may mar the clean, even presentation. Lamina is connectible via integral push-in connectors. Installation is as easy as using one of three options: peel and stick 3M tape, staples or screws. Conforms to curvilinear shapes like round columns. Includes 48” lead wires and one sheet-to-sheet connector.
- 24VDC
- 2700K, 3000K, 3500K, 4000K
- Standard output – 5W per sq. foot
- High output – 10W per sq. foot
-
support option allows even illumination
with translucent panels (easily raises diffusion translucent
panels 0.91” - 2.0” above Lamina. For hoizontal surface
use only). - Dimmable (Triac)
- 90 CRI
- Damp location
- 128 LEDs per sq. foot (1 inch spacing)
- Connectible via integral push-in connectors
- Closet rated
- ETL
- 5 year warranty
Spec Sheet
Info
| Catalog No. | Dimensions | Wattage | Lumens | Color Temp. |
|---|---|---|---|---|
| S12X12-SO-27 | 12″ x 12″ | 5W / sq. foot | 500 / sq. foot | 2700K |
| S12X12-SO-30 | 12″ x 12″ | 5W / sq. foot | 500 / sq. foot | 3000K |
| S12X12-SO-35 | 12″ x 12″ | 5W / sq. foot | 500 / sq. foot | 3500K |
| S12X12-SO-40 | 12″ x 12″ | 5W / sq. foot | 500 / sq. foot | 4000K |
| S12X12-HO-27 | 12″ x 12″ | 10W / sq. foot | 1000 / sq. foot | 2700K |
| S12X12-HO-30 | 12″ x 12″ | 10W / sq. foot | 1000 / sq. foot | 3000K |
| S12X12-HO-35 | 12″ x 12″ | 10W / sq. foot | 1000 / sq. foot | 3500K |
| S12X12-HO-40 | 12″ x 12″ | 10W / sq. foot | 1000 / sq. foot | 4000K |
Accessories
LUXcontrol CONTROLLERS
| MODEL | DESCRIPTION |
|---|---|
| Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire | |
| LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage | |
| SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC | |
| SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC |
Accessories
| Catalog No. | Description |
|---|---|
| 13mm Clear Standoff for Lamina | |
| 19mm Clear Standoff for Lamina |
